We Offering you a complete choice of products which include Water Treatment Plant such as Reverse Osmosis System, Mineral Water Treatment EDI Units and many more items.
RO For General Application
The REVERSE OSMOSIS process uses semi permeable spiral wound membrane to separate and remove dissolve solids, organic pyrogens, submicron colloidal matter and bacteria from water. Feed water is delivered under pressure of about 200 psi through the generators, where water permeates the minute pores of the membrane and is delivered as purified product water. Impurities in the water are concentrated in the rejects stream and flushed to drain. Reverse Osmosis is capable of removing 90-98% of total dissolved solids (TDS), 99% of the organic (including pyrogens).
The process of reverse osmosis removes dissolved salts as well as organics. The process can be explained as the raw water flow through the membrane by applying pressure, in the process a small percentage of the feed water permeates the membrane, the balance portion of water moves alongside the membrane without being filtered and moves out of the system. The stream which permeates through the membrane is the permeate, the second stream of water is called the concentrate because it carries the concentrated salts and other contaminants which are not able to permeate through or rejected through the membrane. Since the two streams of liquid flow side by side to each other this process is also called cross flow filtration process.
Electrodeionization (EDI) is an advanced, complex and environmentally friendly water purification technology that produces high-purity water by combining traditional ion exchange resins with electrically active membranes and a direct electrical current. Unlike conventional deionization systems that require regular regeneration using hazardous chemicals such as acids and alkalis, EDI continuously removes dissolved ions without the need for chemical regeneration, making it a sustainable and cost-effective solution. While conventional water treatment systems typically use Reverse Osmosis (RO) followed by Ion Exchange to achieve high water purity, EDI serves as a modern alternative for Ion Exchange that further enhances water quality while reducing chemical consumption, operating costs, and environmental impact. As a result, EDI is considered a viable alternative technology downstream of RO systems for industries requiring consistently purified water, including pharmaceutical, power generation, electronics, food and beverage, and other critical process applications.
Our RO Plant Contains :

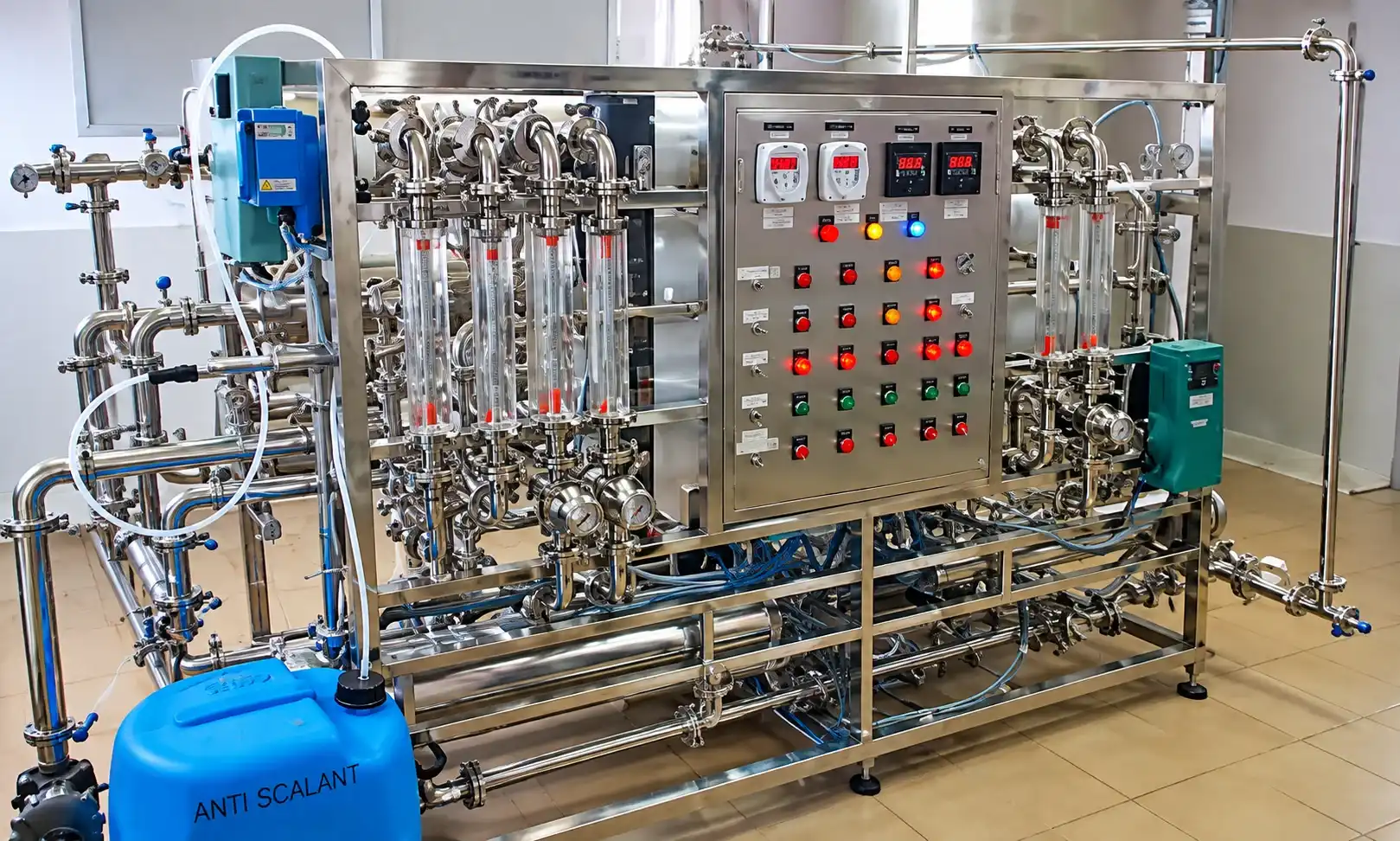

RO For Pharma Application
Neel Water RO Plants are fully designed in compliance with the standards requested by the international Pharma Companies.
We are offering a wide range of RO Water treatment plant that helps in iron removal, water softening and demonetisation manufacturing in line with the set industry standards. This water treatment plants can treat surface as well s ground water. Besides removing mineral like iron, manganese, silica etc. these water treatment plants also helps in removing bad taste and odor from water.
Neel Water RO Plants are the result of many years of experience and constant technical development.
Target Applications
- Production of Ultra pure water for Pharmaceutical, cosmetic and food industries.
- Production of deionised water for industrial use when high bacteriological and chemical quality is required.
Salient Features
- Water quality < 0.5uS/cm, and < 500 ppb
- MOC is SS 316 for contact parts
- Semi / fully automatic plant control
- SCADA system installed for reporting
- GMP Compliant plant setup
