Continuous Electro De-ionization

Electrodeionization (EDI) is an advanced, complex and environmentally friendly water purification technology that produces high-purity water by combining traditional ion exchange resins with electrically active membranes and a direct electrical current. Unlike conventional deionization systems that require regular regeneration using hazardous chemicals such as acids and alkalis, EDI continuously removes dissolved ions without the need for chemical regeneration, making it a sustainable and cost-effective solution. While conventional water treatment systems typically use Reverse Osmosis (RO) followed by Ion Exchange to achieve high water purity, EDI serves as a modern alternative for Ion Exchange that further enhances water quality while reducing chemical consumption, operating costs, and environmental impact. As a result, EDI is considered a viable alternative technology downstream of RO systems for industries requiring consistently purified water, including pharmaceutical, power generation, electronics, food and beverage, and other critical process applications.

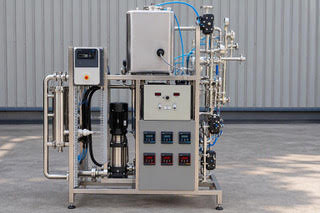

Continuous Electro Deionization (CEDI) System

Design Water Quality

Feed water limiting Conditions for EDI

Parameters Limit
1. Conductivity < 20 µS/cm
2. Temperature 5°C - 45°C
3. Inlet Pressure 2.5 bar
4. Max Free Chlorine NIL
5. Iron < 0.01 ppm
6. Manganese < 0.01 ppm
7. Sulfide < 0.01 ppm
8. pH 4 – 10
9. Total Hardness Nil
10. Total Organics < 0.5 ppm
11. Silica Nil

Our System Contains:

  • EDI Feed Pump
  • Continuous Electro De-ionization Unit (CEDI)
  • Pressure Gauges
  • Rotameter
  • Turbine Type Flow meter
  • Vortex Type Flow Meter
  • Low Pressure Switch
  • Conductivity meter with sensor
  • Flow diverter valve
  • Sampling valve
  • Isolation Valve
  • ORP Meter with sensor
  • PLC Control Panel with HMI touch Screen
  • DC Transformer rectifier
  • Interconnecting piping, nut bolts and Gasket

Advantages of EDI

  • Compact and Modular Design
  • Low Operating Cost
  • No regeneration and hence no / minimum chemical consumption
  • Easy to operate and maintain, requires practically no maintenance
  • Very high reliability and consistency with respect to conductivity
